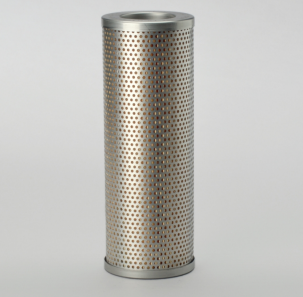

Donaldson Filtration P551160 HYDRAULIC FILTER, CARTRIDGE

y Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 3.94 inch (100.1 mm)
Inner Diameter 2.34 inch (59.44 mm)
Length 10.94 inch (277.88 mm)
Efficiency Beta 2 9 micron
Efficiency Beta 20 19 micron
Collapse Burst 100 psi (6.9 bar)
Flow Direction Standard
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application KOMATSU 1446011160
Packaged Dimensions
Packaged Length 4.70 inch (11.938 cm)
Packaged Width 4.70 inch (11.938 cm)
Packaged Height 12.10 inch (30.734 cm)
Packaged Weight 1.43 lb (0.647 kg)
Packaged Volume 0.15 ft3 (0.004 m3)
Pieces Per Pallet 132
Other Information
Country of Origin Mexico
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330043707
