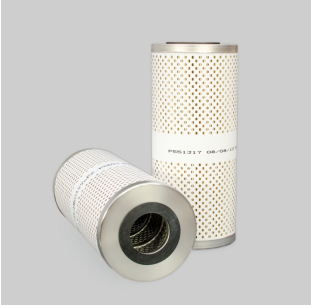

Donaldson Filtration P551317 FUEL FILTER, CARTRIDGE

Why Choose Donaldson Fuel Filters?
Donaldson fuel filters are designed to help prevent
premature injector and pump wear by delivering cleaner
fuel to your engines.
• Reliable performance – pressure relief valve allows fuel to
rise slowly.
• Compatible with existing electronic filter life indicators.
• Cellulose media – effectively meets application efficiency
and capacity requirements.
Attributes
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 1.64 inch (41.7 mm)
Length 9.25 inch (234.9 mm)
Gasket OD 2.5 inch (63.5 mm)
Gasket ID 1.64 inch (41.7 mm)
Efficiency 99% 4 micron
Efficiency Test Std SAE J1985
Flow Direction Standard
Style Cartridge
Media Type Cellulose
Price Type F
Primary Application CATERPILLAR 1R0756
Packaged Dimensions
Packaged Length 3.90 inch (9.906 cm)
Packaged Width 3.70 inch (9.398 cm)
Packaged Height 9.20 inch (23.368 cm)
Packaged Weight 1.01 lb (0.456 kg)
Packaged Volume 0.08 ft3 (0.002 m3)
Pieces Per Pallet 384
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421230000
UPC Code 742330087350
