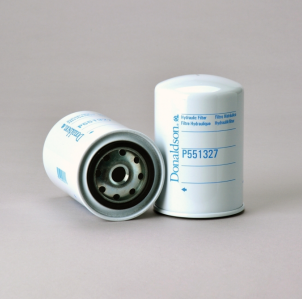

Donaldson Filtration P551327 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.76 inch (95.5 mm)
Thread Size 3/4-16 UN
Length 5.68 inch (144.3 mm)
Gasket OD 2.83 inch (71.8 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency Beta 2 27 micron
Bypass Valve Yes
Bypass Valve Setting LR 23 psi (1.6 bar)
Flow Direction Outside-In
Style Spin-On
Media Type Cellulose
Price Type F
Primary Application HYSTER 1328691
Packaged Dimensions
Packaged Length 4.33 inch (10.998 cm)
Packaged Width 4.33 inch (10.998 cm)
Packaged Height 6.30 inch (16.002 cm)
Packaged Weight 1.70 lb (0.770 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Pieces Per Pallet 693
Other Information
Country of Origin Italy
NMFC Code 069100-07
HTS Code 8421290040
UPC Code 742330080818
