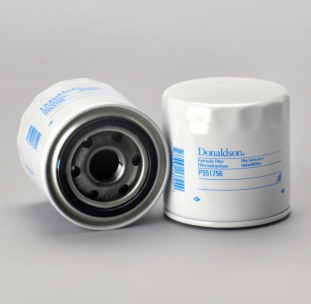

Donaldson Filtration P551756 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.67 inch (93.21 mm)
Thread Size 1-12 UN
Length 3.78 inch (96.11 mm)
Gasket OD 2.83 inch (71.98 mm)
Gasket ID 2.46 inch (62.53 mm)
Efficiency Beta 75 34 micron
Efficiency Test Std SAE J1858
Bypass Valve Yes
Bypass Valve Setting LR 7 psi (0.5 bar)
Bypass Valve Setting HR 10 psi (0.7 bar)
Style Spin-On
Media Type Cellulose
Price Type F
Primary Application CASE/CASE IH 404886R1
Packaged Dimensions
Packaged Length 4.00 inch (10.160 cm)
Packaged Width 4.00 inch (10.160 cm)
Packaged Height 4.00 inch (10.160 cm)
Packaged Weight 0.94 lb (0.427 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 864
Other Information
Country of Origin United States
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330137949
