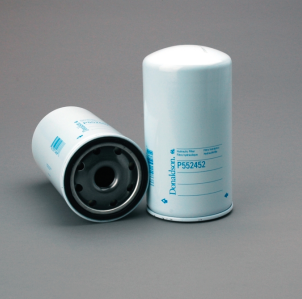

Donaldson Filtration P552452 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 4.28 inch (108.76 mm)
Thread Size 1 1/8-16 UN
Length 8.09 inch (205.56 mm)
Gasket OD 3.97 inch (100.76 mm)
Gasket ID 3.59 inch (91.11 mm)
Efficiency Beta 200 30 micron
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 9.30 inch (23.622 cm)
Packaged Width 5.30 inch (13.462 cm)
Packaged Height 5.50 inch (13.970 cm)
Packaged Weight 2.27 lb (1.028 kg)
Packaged Volume 0.16 ft3 (0.004 m3)
Pieces Per Pallet 68
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330148686
