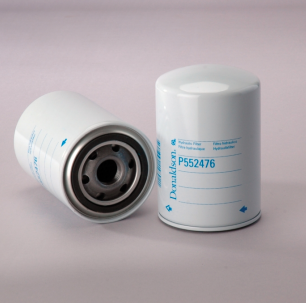

Donaldson Filtration P552476 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size M24 x 2
Length 5.50 inch (139.7 mm)
Gasket OD 2.83 inch (71.98 mm)
Gasket ID 2.46 inch (62.53 mm)
Efficiency Beta 2 5 micron
Efficiency Beta 1000 24 micron
Style Spin-On
Price Type F
Packaged Dimensions
Packaged Length 3.54 inch (8.992 cm)
Packaged Width 3.54 inch (8.992 cm)
Packaged Height 5.51 inch (13.995 cm)
Packaged Weight 1.27 lb (0.574 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 560
Other Information
Country of Origin United States
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330148921
