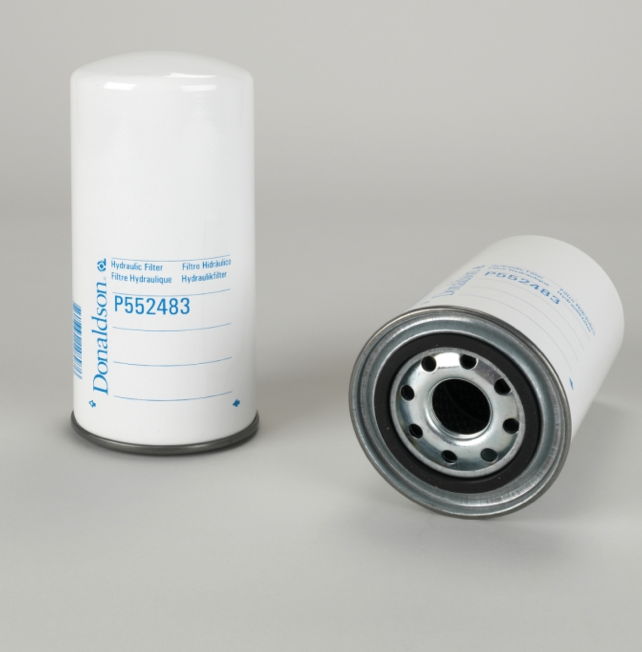

Donaldson Filtration P552483.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.78 inch (96 mm)

Thread Size 1 1/8-16 UN

Length 7.83 inch (198.81 mm)

Gasket OD 2.83 inch (71.98 mm)

Gasket ID 2.46 inch (62.54 mm)

Efficiency Beta 2 27 micron

Flow Direction Outside-In

Style Spin-OnMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 4.50 inch (11.430 cm)

Packaged Width 4.30 inch (10.922 cm)

Packaged Height 9.70 inch (24.638 cm)

Packaged Weight 1.41 lb (0.640 kg)

Packaged Volume 0.11 ft3 (0.003 m3)

Pieces Per Pallet 275

Other Information

Country of Origin Italy

NMFC Code 069100-09

HTS Code 8421290040

UPC Code 742330148976
