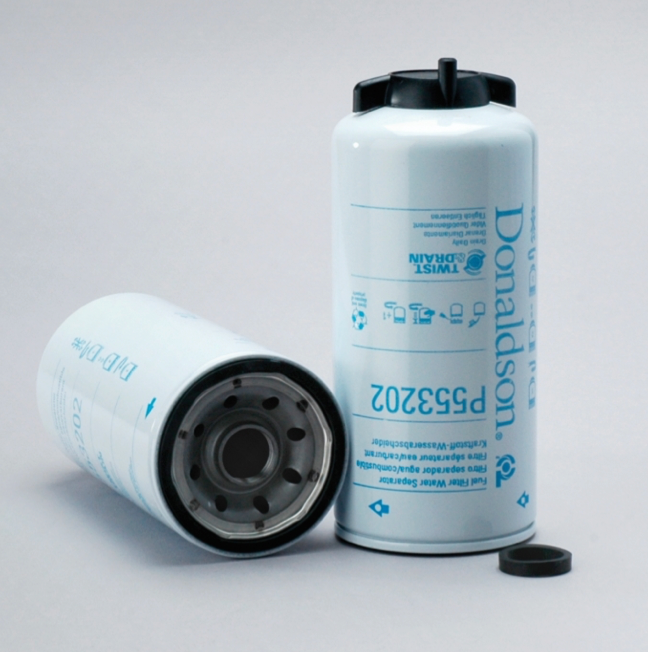

Donaldson Filtration P553202.FUEL FILTER, WATER SEPARATOR SPIN-ON TWIST&DRAIN

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1-12 UN

Length 8.64 inch (219.5 mm)

Gasket OD 3.39 inch (86.2 mm)

Gasket ID 3.05 inch (77.5 mm)

Efficiency 99% 23 micron

Efficiency Test Std SAE J1985

Emulsified H2O Efficiency 95.00 Percent

Flow Direction Standard

Type Water Separator

Style Spin-OnBrand Twist&Drain™

Price Type F

Primary Application RACOR S3202

Packaged Dimensions

Packaged Length 3.85 inch (9.779 cm)

Packaged Width 3.65 inch (9.271 cm)

Packaged Height 8.65 inch (21.971 cm)

Packaged Weight 1.30 lb (0.590 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 480

Other Information

Country of Origin Mexico

NMFC Code 069100-01

HTS Code 8421230000

UPC Code 742330195567
