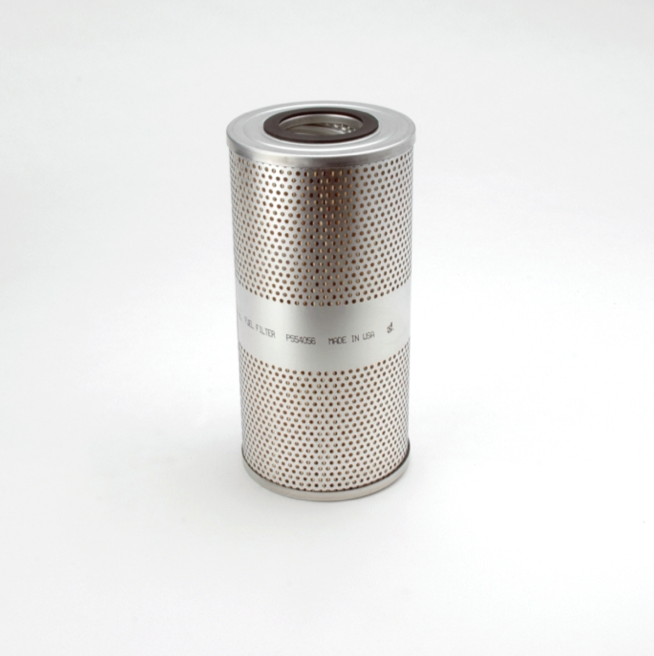

Donaldson Filtration P554056.FUEL FILTER, CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Cellulose media – effectively meets application efficiency

and capacity requirements.

Attributes

Outer Diameter 5.06 inch (128.6 mm)

Inner Diameter 2.28 inch (57.9 mm)

Length 10.29 inch (261.4 mm)

Efficiency 50% 3 micron

Efficiency 99% 9 micron

Efficiency Test Std SAE J1985

Flow Direction Standard

Collapse Burst 75 psi (5.2 bar)

Style CartridgeMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 5.30 inch (13.462 cm)

Packaged Width 5.30 inch (13.462 cm)

Packaged Height 11.60 inch (29.464 cm)

Packaged Weight 2.12 lb (0.960 kg)

Packaged Volume 0.19 ft3 (0.005 m3)

Pieces Per Pallet 192

Other Information

Country of Origin Mexico

NMFC Code 121510

HTS Code 8421230000

UPC Code 742330044568
