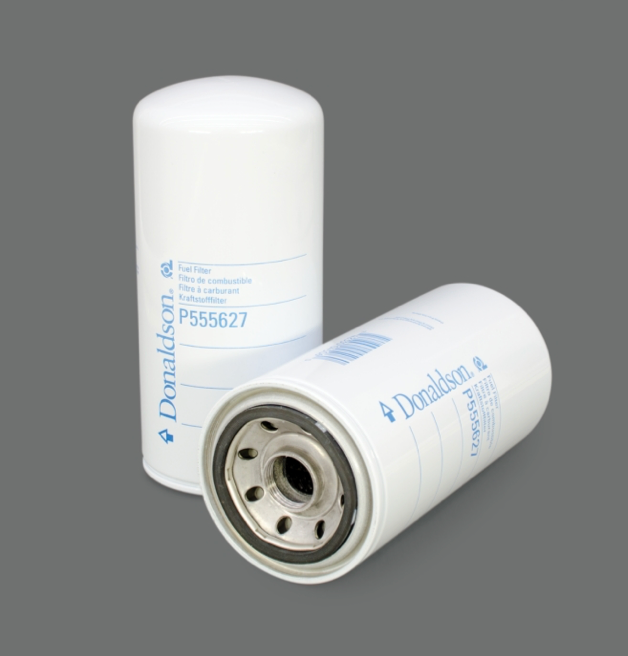

Donaldson Filtration P555627.FUEL FILTER, SPIN-ON SECONDARY

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1-14 UN

Length 7.87 inch (200 mm)

Gasket OD 2.83 inch (72 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency 99% 9 micron

Efficiency Test Std SAE J1985

Emulsified H2O Efficiency 95.00 Percent

Collapse Burst 100 psi (6.9 bar)

Type Water Separator

Style Spin-OnMedia Type Cellulose

Price Type F

Primary Application CASE/CASE IH 625627C1

Packaged Dimensions

Packaged Length 3.94 inch (10.008 cm)

Packaged Width 3.94 inch (10.008 cm)

Packaged Height 7.87 inch (19.990 cm)

Packaged Weight 1.29 lb (0.586 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 35

Other Information

Country of Origin Mexico

NMFC Code 121510

HTS Code 8421230000

UPC Code 742330045060

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
