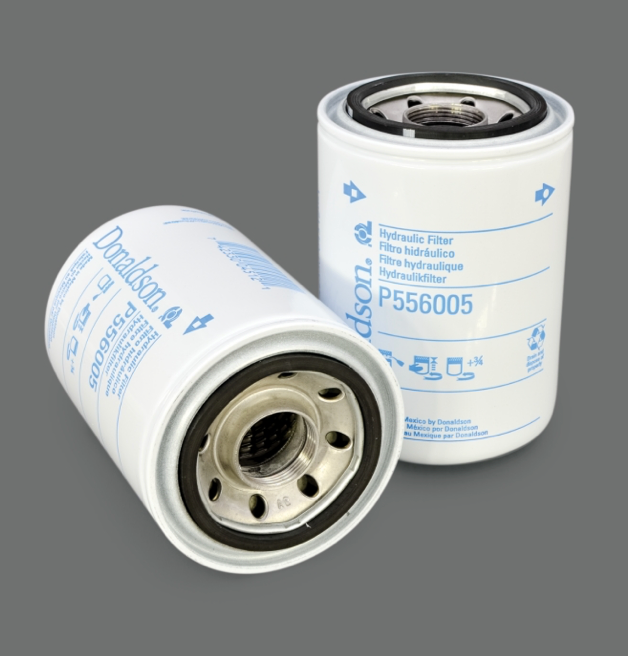

Donaldson Filtration P556005.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1 1/8-16 UN

Length 5.35 inch (136 mm)

Gasket OD 2.83 inch (72 mm)

Gasket ID 2.44 inch (62 mm)

Efficiency Beta 2 7 micron

Efficiency Beta 1000 23 micron

Style Spin-OnMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 0.31 FT

Packaged Width 0.31 FT

Packaged Height 0.46 FT

Packaged Weight 1.15 lb (0.522 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 840

Other Information

Country of Origin Mexico

NMFC Code 069100-09

HTS Code 8421290040

UPC Code 742330045121
