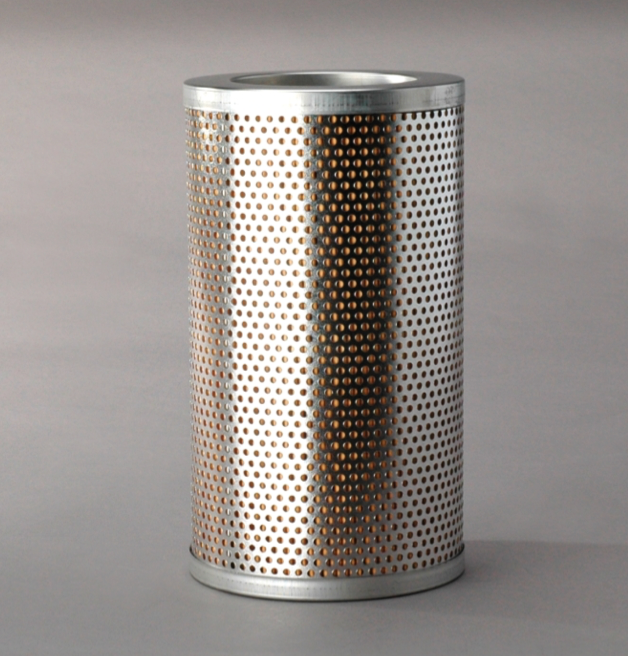

Donaldson Filtration P556064.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 5.07 inch (128.8 mm)

Inner Diameter 3.35 inch (85.1 mm)

Length 8.90 inch (226 mm)

Efficiency Beta 2 20 micron

Efficiency Beta 20 35 micron

Collapse Burst 149 psi (10.3 bar)

Flow Direction Standard

Style Cartridge

Media Type CellulosePrice Type F

Primary Application CATERPILLAR 4J6064

Packaged Dimensions

Packaged Length 4.90 inch (12.446 cm)

Packaged Width 4.90 inch (12.446 cm)

Packaged Height 9.00 inch (22.860 cm)

Packaged Weight 1.61 lb (0.729 kg)

Packaged Volume 0.12 ft3 (0.003 m3)

Pieces Per Pallet 240

Other Information

Country of Origin Mexico

NMFC Code 069100-06

HTS Code 8421290040

UPC Code 742330045145

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
