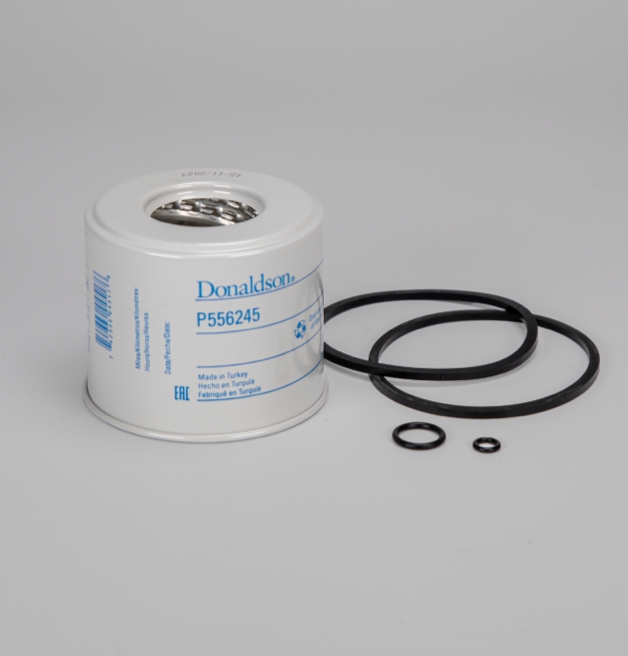

Donaldson Filtration P556245.FUEL FILTER, CARTRIDGE

Why Choose Donaldson Fuel Filters?

Donaldson fuel filters are designed to help prevent

premature injector and pump wear by delivering cleaner

fuel to your engines.

• Reliable performance – pressure relief valve allows fuel to

rise slowly.

• Compatible with existing electronic filter life indicators.

• Cellulose media – effectively meets application efficiency

and capacity requirements.

Attributes

Outer Diameter 3.48 inch (88.5 mm)

Inner Diameter 0.81 inch (19 mm)

Length 2.8 inch (71.2 mm)

Efficiency 99% 14 micron

Efficiency Test Std SAE J1985

Style Cartridge

Media Type Cellulose

Price Type FPackaged Dimensions

Packaged Length 3.94 inch (10.008 cm)

Packaged Width 3.94 inch (10.008 cm)

Packaged Height 3.94 inch (10.008 cm)

Packaged Weight 0.54 lb (0.243 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 960

Other Information

Country of Origin Türkiye

NMFC Code 069100-13

HTS Code 8421230000

UPC Code 742330045176
