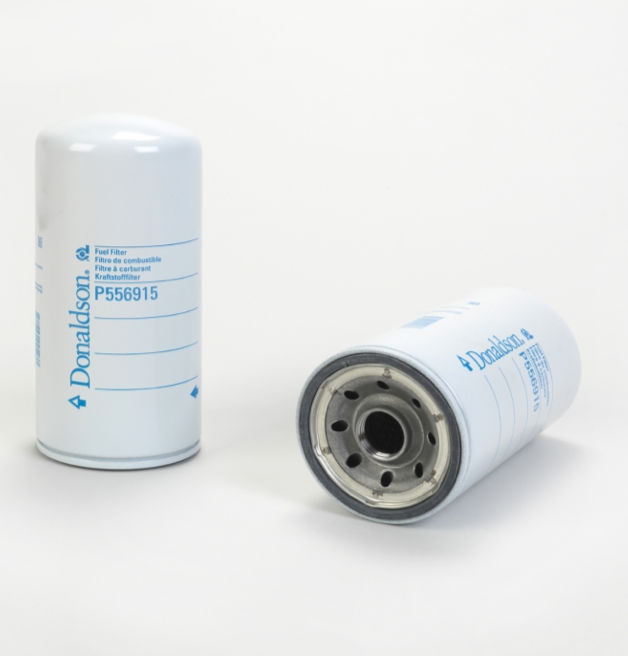

Donaldson Filtration P556915.FUEL FILTER, SPIN-ON PRIMARY

Why Choose Donaldson Blue® Filters?

Donaldson Blue® fuel filters with Synteq XP™ media deliver

fuel that's up to 4x cleaner than competitors' best filters.

• Best capture and retention of injector damaging

contaminants.

• Best performance in heavy-duty environments (inferior

filters can “shed” contaminant during engine vibration).

• Helps minimize expensive repairs and unplanned

downtime.

Attributes

Outer Diameter 3.66 inch (93 mm)

Thread Size 1-12 UN

Length 7.87 inch (200 mm)

Gasket OD 3.39 inch (86.2 mm)

Gasket ID 3.05 inch (77.5 mm)

Efficiency 99% 25 micron

Efficiency Test Std SAE J1985

Collapse Burst 100 psi (6.9 bar)

Type PrimaryStyle Spin-On

Media Type Cellulose

Price Type F

Primary Application DETROIT DIESEL 23517471

Packaged Dimensions

Packaged Length 0.31 FT

Packaged Width 0.31 FT

Packaged Height 0.67 FT

Packaged Weight 1.63 lb (0.740 kg)

Packaged Volume 0.06 ft3 (0.002 m3)

Pieces Per Pallet 600

Other Information

Country of Origin Colombia

NMFC Code 069100-05

HTS Code 8421230000

UPC Code 742330045237

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
