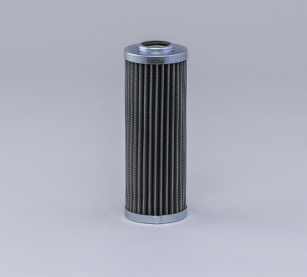

Donaldson Filtration P562995 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 40 micron
Outer Diameter 2.09 inch (53 mm)
Inner Diameter 0.96 inch (24.5 mm)
Length 5.87 inch (149 mm)
Efficiency Beta 2 40 micron
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 2.40 inch (6.096 cm)
Packaged Width 2.30 inch (5.842 cm)
Packaged Height 8.70 inch (22.098 cm)
Packaged Weight 0.70 lb (0.318 kg)
Packaged Volume 0.03 ft3 (0.001 m3)
Other Information
Country of Origin Canada
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330196564
