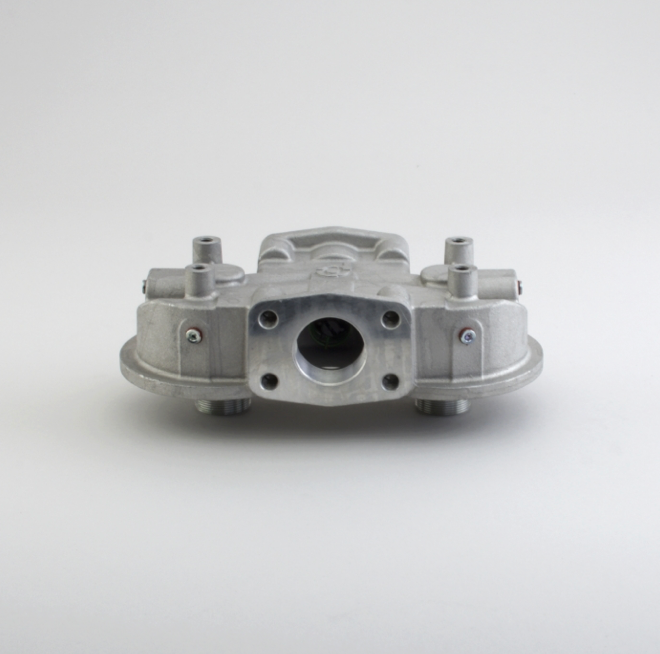

Donaldson Filtration P563273.HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads

• A variety of low, medium and high-pressure filter heads

available for a wide range of applications.

• Choose between optional features for a customized heads

that best fits the needs of your specific application.

• A variety of inlet & outlet port configurations are available

to meet your exact requirements.

Attributes

Length 9.84 inch (250 mm)

Width 5.71 inch (145 mm)

Height 3.07 inch (78 mm)

Inlet Size 1 1/2 NPT

Outlet Size 1 1/2 NPT

Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN (x2)

Bypass Valve Yes

Bypass Valve Setting LR 15 psi (1 bar)

Series SP80/90

Price Type HPackaged Dimensions

Packaged Length 12.30 inch (31.242 cm)

Packaged Width 4.80 inch (12.192 cm)

Packaged Height 7.30 inch (18.542 cm)

Packaged Weight 6.02 lb (2.731 kg)

Packaged Volume 0.25 ft3 (0.007 m3)

Pieces Per Pallet 180

Other Information

Country of Origin United States

NMFC Code 069100-04

HTS Code 8421990180

UPC Code 742330158029
