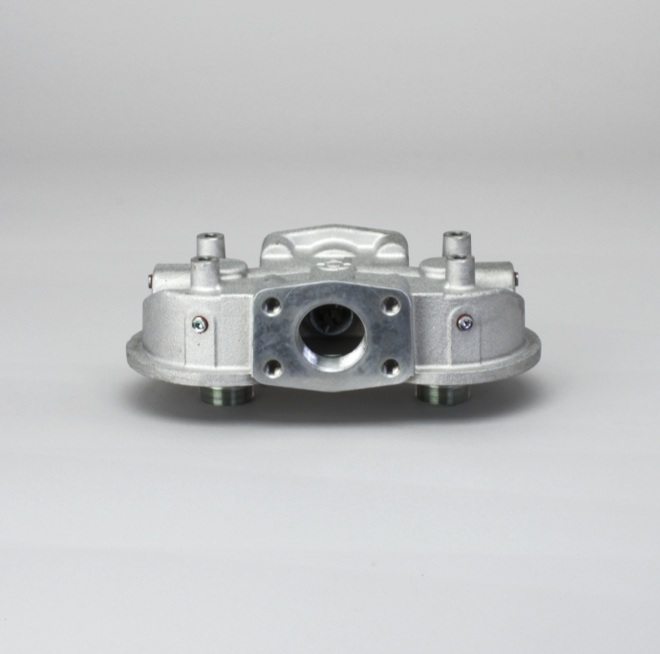

Donaldson Filtration P563276.HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads

• A variety of low, medium and high-pressure filter heads

available for a wide range of applications.

• Choose between optional features for a customized heads

that best fits the needs of your specific application.

• A variety of inlet & outlet port configurations are available

to meet your exact requirements.

Attributes

Length 9.84 inch (250 mm)

Width 5.71 inch (145 mm)

Height 3.07 inch (78 mm)

Inlet Size 1 1/2 NPT

Outlet Size 1 1/2 NPT

Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN

Bypass Valve Yes

Bypass Valve Setting LR 4 psi (0.3 bar)

Series SP80/90

Price Type HPackaged Dimensions

Packaged Length 12.20 inch (30.988 cm)

Packaged Width 4.90 inch (12.446 cm)

Packaged Height 7.10 inch (18.034 cm)

Packaged Weight 5.99 lb (2.719 kg)

Packaged Volume 0.25 ft3 (0.007 m3)

Pieces Per Pallet 33

Other Information

Country of Origin United States

NMFC Code 069100-04

HTS Code 8421990180

UPC Code 742330158050
