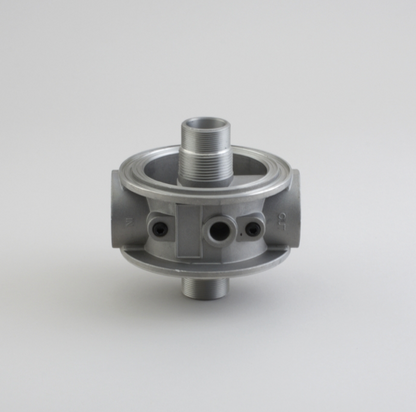

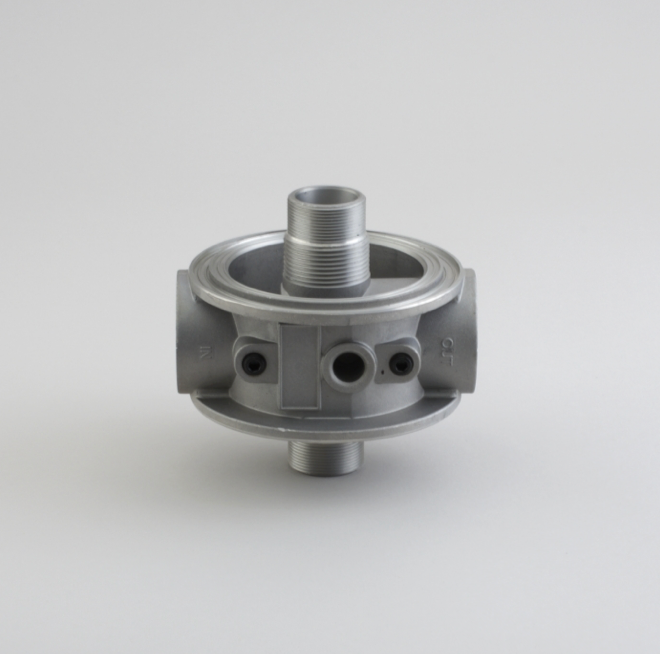

Donaldson Filtration P563277.HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads

• A variety of low, medium and high-pressure filter heads

available for a wide range of applications.

• Choose between optional features for a customized heads

that best fits the needs of your specific application.

• A variety of inlet & outlet port configurations are available

to meet your exact requirements.

Attributes

Length 5.51 inch (139.95 mm)

Height 5.51 inch (139.95 mm)

Inlet Size 1 1/2 NPT

Outlet Size 1 1/2 NPT

Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN (x2)

Bypass Valve Yes

Bypass Valve Setting LR 25 psi (1.7 bar)

Series SP100/120

Price Type HPackaged Dimensions

Packaged Length 6.15 inch (15.621 cm)

Packaged Width 5.90 inch (14.986 cm)

Packaged Height 5.50 inch (13.970 cm)

Packaged Weight 2.07 lb (0.938 kg)

Packaged Volume 0.12 ft3 (0.003 m3)

Pieces Per Pallet 384

Other Information

Country of Origin Italy

NMFC Code 133300-03

HTS Code 8421990180

UPC Code 742330158067
