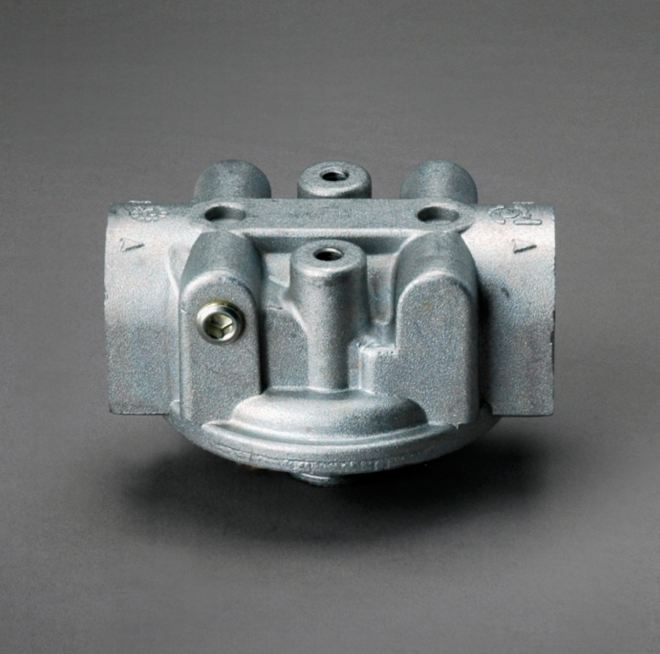

Donaldson Filtration P563288.HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads

• A variety of low, medium and high-pressure filter heads

available for a wide range of applications.

• Choose between optional features for a customized heads

that best fits the needs of your specific application.

• A variety of inlet & outlet port configurations are available

to meet your exact requirements.

Attributes

Length 3.74 inch (95 mm)

Height 2.40 inch (61 mm)

Inlet Size 1/2-14 NPT

Outlet Size 1/2-14 NPT

Filter-to-Head Thread 1-12 UN

Bypass Valve Yes

Bypass Valve Setting LR 15 psi (1 bar)

Series SP15/25

Price Type HPackaged Dimensions

Packaged Length 4.20 inch (10.668 cm)

Packaged Width 4.30 inch (10.922 cm)

Packaged Height 4.30 inch (10.922 cm)

Packaged Weight 0.82 lb (0.370 kg)

Packaged Volume 0.04 ft3 (0.001 m3)

Pieces Per Pallet 72

Other Information

Country of Origin Italy

NMFC Code 069100-13

HTS Code 8421990180

UPC Code 742330160930
