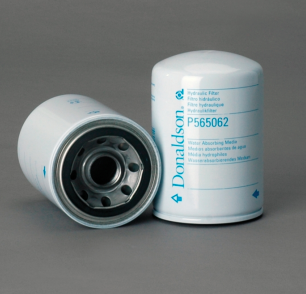

Donaldson Filtration P565062 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 5.35 inch (135.89 mm)
Gasket OD 2.81 inch (71.5 mm)
Gasket ID 2.42 inch (61.5 mm)
Efficiency Beta 2 10 micron
Water Capacity 170 ml
Flow Direction Standard
Style Spin-On
Series SP15/25
Media Type Synthetic, Water Absorbent
Price Type FH
Packaged Dimensions
Packaged Length 4.00 inch (10.160 cm)
Packaged Width 3.90 inch (9.906 cm)
Packaged Height 5.80 inch (14.732 cm)
Packaged Weight 1.26 lb (0.572 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 840
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330165966
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Formaldehyde, which are known
to the State of California to cause cancer. For
more information go to
www.P65Warnings.ca.gov
