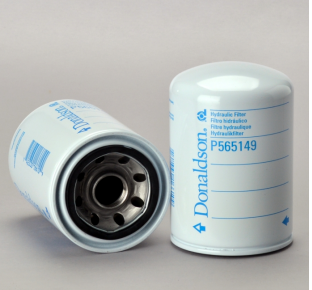

Donaldson Filtration P565149 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters
• High-performance Hydraulic Spin-On filters utilize
Donaldson media technology which undergoes stringent
design and testing which sets the standard in filtration
performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM
specifications
Attributes
Outer Diameter 3.66 inch (93 mm)
Thread Size 31/32-20 UN
Length 5.35 inch (136 mm)
Gasket OD 2.81 inch (71.5 mm)
Gasket ID 2.42 inch (61.5 mm)
Efficiency Beta 1000 14 micron
Bypass Valve Yes
Bypass Valve Setting LR 23 psi (1.6 bar)
Flow Direction Standard
Style Spin-On
Media Type Synthetic
Price Type FH
Primary Application SULLAIR 250026982
Packaged Dimensions
Packaged Length 4.00 inch (10.160 cm)
Packaged Width 3.80 inch (9.652 cm)
Packaged Height 5.70 inch (14.478 cm)
Packaged Weight 1.30 lb (0.588 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 297
Other Information
Country of Origin Mexico
NMFC Code 069100-13
HTS Code 8421290040
UPC Code 742330166109
