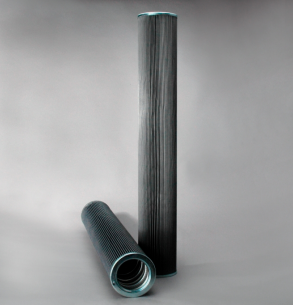

Donaldson Filtration P565312 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Mesh Rating 75 micron
Outer Diameter 5.96 inch (151.4 mm)
Inner Diameter 4.09 inch (103.9 mm)
Length 38.65 inch (981.7 mm)
Efficiency Beta 2 75 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH*
Packaged Dimensions
Packaged Length 7.10 inch (18.034 cm)
Packaged Width 7.10 inch (18.034 cm)
Packaged Height 40.70 inch (103.378 cm)
Packaged Weight 15.65 lb (7.105 kg)
Packaged Volume 1.19 ft3 (0.033 m3)
Pieces Per Pallet 30
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290065
UPC Code 742330167427
