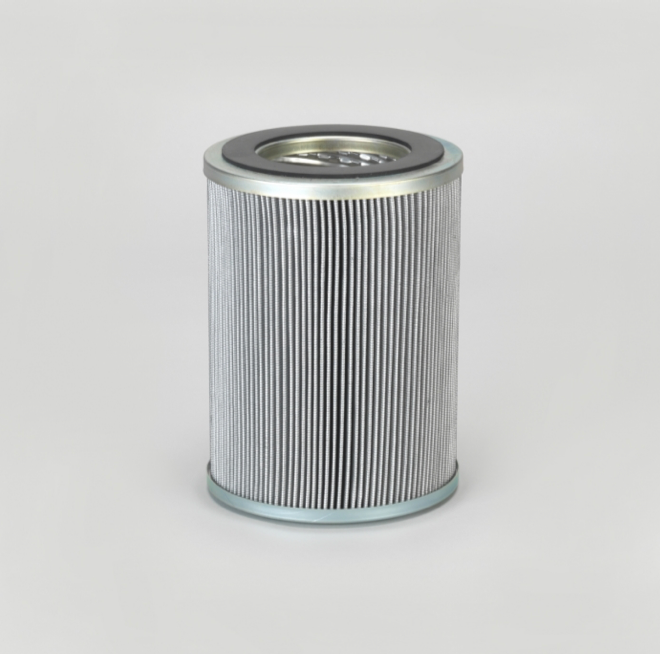

Donaldson Filtration P566904 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Seal Material Viton

Outer Diameter 6.01 inch (152.7 mm)

Inner Diameter 2.87 inch (72.9 mm)

Length 8.27 inch (210 mm)

Gasket OD 2.72 inch (69 mm)

Gasket ID 3.66 inch (93 mm)

Efficiency Beta 200 9 micron

Efficiency Beta 1000 12 micron

Collapse Burst 100 psi (6.9 bar)Flow Direction Outside-In

Style Cartridge

Media Type Synthetic

Price Type FH

Packaged Dimensions

Packaged Length 6.40 inch (16.256 cm)

Packaged Width 6.40 inch (16.256 cm)

Packaged Height 9.80 inch (24.892 cm)

Packaged Weight 3.00 lb (1.362 kg)

Packaged Volume 0.29 ft3 (0.008 m3)

Pieces Per Pallet 120

Other Information

Country of Origin United States

NMFC Code 069100-05

HTS Code 8421290040

UPC Code 742330180327

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
