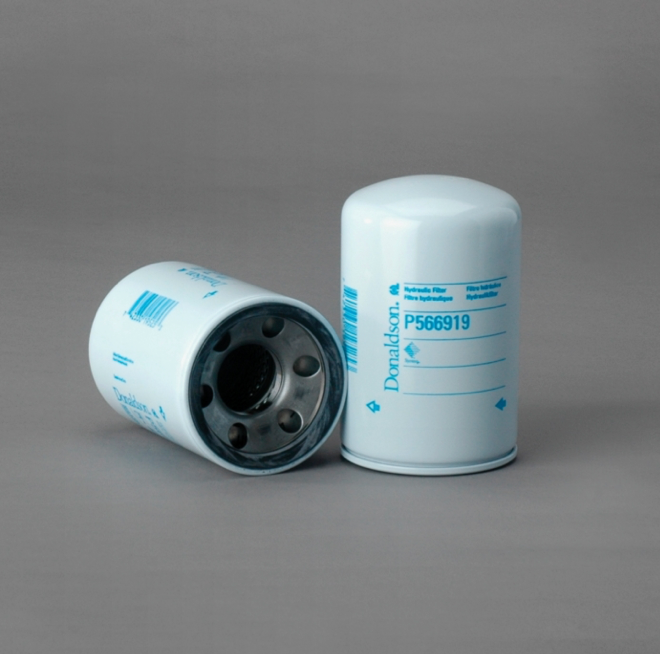

Donaldson Filtration P566919 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.66 inch (92.96 mm)

Thread Size 1 1/2-16 UN

Length 5.78 inch (146.81 mm)

Gasket OD 3.39 inch (86 mm)

Gasket ID 2.89 inch (73.4 mm)

Efficiency Beta 1000 5 micron

Flow Direction Standard

Style Spin-OnMedia Type Synthetic

Price Type FH

Packaged Dimensions

Packaged Length 4.40 inch (11.176 cm)

Packaged Width 4.40 inch (11.176 cm)

Packaged Height 6.60 inch (16.764 cm)

Packaged Weight 1.65 lb (0.749 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Pieces Per Pallet 48

Other Information

Country of Origin United States

NMFC Code 069100-07

HTS Code 8421290040

UPC Code 742330195253

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.5
