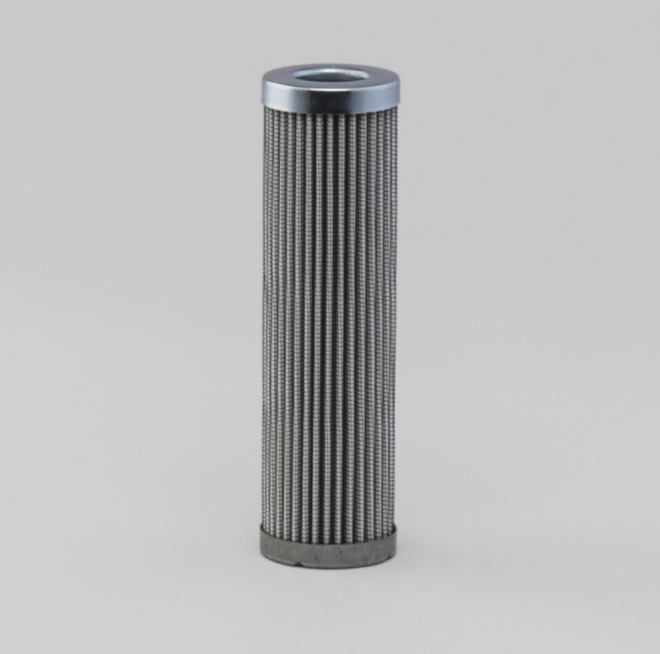

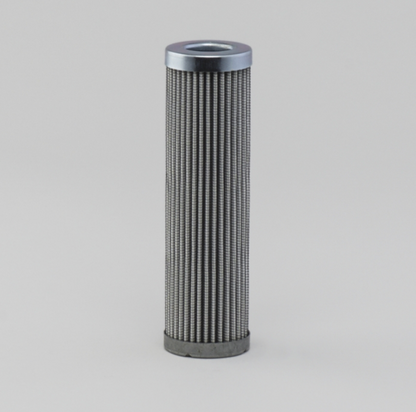

Donaldson Filtration P567086. HYDRAULIC FILTER, CARTRIDGE DT

Why Choose Donaldson DT Filters?

High-performance DT Hydraulic Cartridges utilize Donaldson

Synteq™ media technology which extends filter life, allows a

higher initial cleanliness, and provides superior hydraulic

system protection.

• DT hydraulic filters help protect equipment, reduce

maintenance cost and increase equipment uptime which

has a direct impact on your bottom line.

• DT filters offer the best available chemical resistance for

hydraulic applications.

• A high dirt holding capacity provides longer filter life for

extended filter change intervals, reducing time and expense

for servicing equipment

• Fluorocarbon seals are standard on all Donaldson DT

filters.

Attributes

Outer Diameter 1.77 inch (45 mm)

Inner Diameter 1.00 inch (25.5 mm)

Overall Length 6.77 inch (172 mm)

Efficiency Beta 1000 8 micron

Collapse Burst 450 psi (31 bar)

Flow Direction Outside-InStyle Cartridge

Brand DT High-Performance

Media Type Synthetic

Price Type FH*

Packaged Dimensions

Packaged Length 2.40 inch (6.096 cm)

Packaged Width 2.40 inch (6.096 cm)

Packaged Height 10.30 inch (26.162 cm)

Packaged Weight 0.42 lb (0.191 kg)

Packaged Volume 0.03 ft3 (0.001 m3)

Pieces Per Pallet 1360

Other Information

Country of Origin United States

NMFC Code 069100-04

HTS Code 8421290040

UPC Code 742330191828

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
