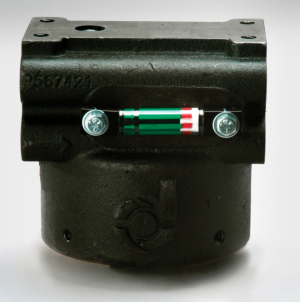

Donaldson Filtration P567639 HEAD ASSEMBLY, HYDRAULIC

Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Length 5.00 inch (127 mm)
Height 5.31 inch (134.9 mm)
Inlet Size 1 1/2 SAE 4 Bolt Code 61, SAE-20 O-Ring
Outlet Size 1 1/2 SAE 4 Bolt Code 61, SAE-20 O-Ring
Filter-to-Head Thread M110 x 2
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HPK04
Price Type H
Packaged Dimensions
Packaged Length 7.10 inch (18.035 cm)
Packaged Width 6.70 inch (17.017 cm)
Packaged Height 8.50 inch (21.589 cm)
Packaged Weight 21.35 lb (9.693 kg)
Packaged Volume 0.23 ft3 (0.007 m3)
Other Information
Country of Origin United States
NMFC Code 069100-03
HTS Code 8421990180
UPC Code 742330196823
