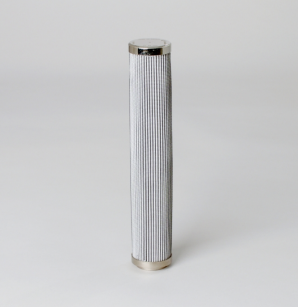

Donaldson Filtration P567903 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 1.77 inch (45 mm)
Inner Diameter 0.95 inch (24.2 mm)
Length 9.80 inch (249 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 2321 psi (160 bar)
Style Cartridge
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 2.90 inch (7.366 cm)
Packaged Width 2.80 inch (7.112 cm)
Packaged Height 10.10 inch (25.654 cm)
Packaged Weight 1.25 lb (0.565 kg)
Packaged Volume 0.05 ft3 (0.001 m3)
Pieces Per Pallet 928
Other Information
Country of Origin Canada
NMFC Code 069100-08
HTS Code 8421290040
UPC Code 742330201305
