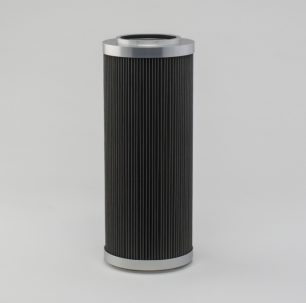

Donaldson Filtration P568449 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Mesh Rating 40 micron
Outer Diameter 6.2 inch (157.48 mm)
Inner Diameter 3.73 inch (94.84 mm)
Length 15.66 inch (397.8 mm)
Efficiency Beta 2 40 micron
Collapse Burst 218 psi (15 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 6.60 inch (16.764 cm)
Packaged Width 6.60 inch (16.764 cm)
Packaged Height 19.80 inch (50.292 cm)
Packaged Weight 7.48 lb (3.396 kg)
Packaged Volume 0.50 ft3 (0.014 m3)
Pieces Per Pallet 84
Other Information
Country of Origin United States
NMFC Code 069100-09
HTS Code 8421290040
UPC Code 742330191477
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Nickel (Metallic), which are known
to the State of California to cause cancer. For
more information go to
www.P65Warnings.ca.gov.
