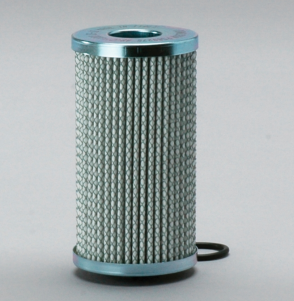

Donaldson Filtration P569275 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 2.76 inch (70 mm)
Inner Diameter 1.14 inch (29 mm)
Length 5.08 inch (129 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 145 psi (10 bar)
Flow Direction Outside-In
Style Cartridge
Series FIK
Media Type Synthetic
Price Type FH
Packaged Dimensions
Packaged Length 3.30 inch (8.382 cm)
Packaged Width 3.20 inch (8.128 cm)
Packaged Height 6.00 inch (15.240 cm)
Packaged Weight 0.71 lb (0.322 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 61
Other Information
Country of Origin Italy
NMFC Code 069100-10
HTS Code 8421290040
UPC Code 742330196281
