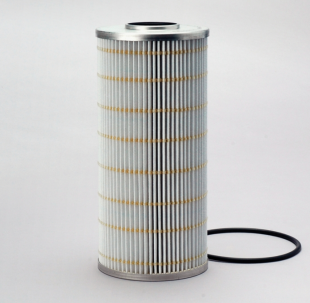

Donaldson Filtration P569614 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.78 inch (121.4 mm)
Inner Diameter 2.05 inch (52 mm)
Length 10.29 inch (261.4 mm)
Overall Length 10.46 inch (265.7 mm)
Efficiency Beta 1000 9 micron
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type F
Packaged Dimensions
Packaged Length 0.45 FT
Packaged Width 0.45 FT
Packaged Height 0.98 FT
Packaged Weight 1.93 lb (0.876 kg)
Packaged Volume 0.20 ft3 (0.006 m3)
Pieces Per Pallet 256
Other Information
Country of Origin Mexico
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330197127
