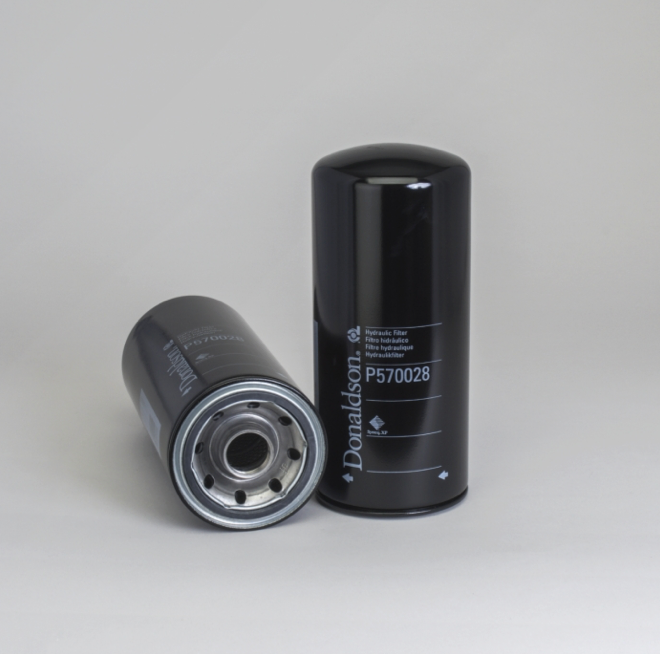

Donaldson Filtration P570028.HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 5.33 inch (135.3 mm)

Thread Size 1 1/2-16 UN

Length 12.13 inch (308 mm)

Gasket OD 4.36 inch (110.8 mm)

Gasket ID 3.95 inch (100.3 mm)

Efficiency Beta 1000 9 micron

Flow Direction Standard

Style Spin-OnMedia Type Synthetic

Price Type FH

Packaged Dimensions

Packaged Length 6.20 inch (15.748 cm)

Packaged Width 6.20 inch (15.748 cm)

Packaged Height 12.70 inch (32.258 cm)

Packaged Weight 4.80 lb (2.179 kg)

Packaged Volume 0.28 ft3 (0.008 m3)

Pieces Per Pallet 98

Other Information

Country of Origin United States

NMFC Code 069100-08

HTS Code 8421290040

UPC Code 742330198773

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
