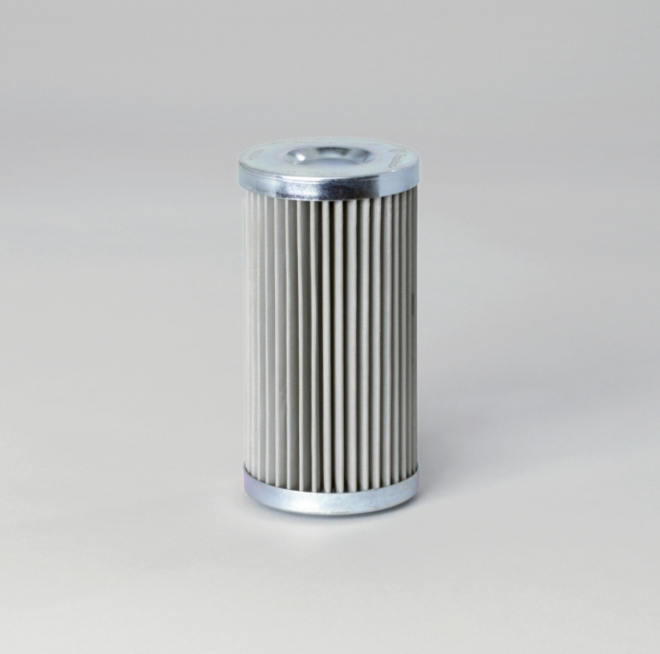

Donaldson Filtration P570269.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Mesh Rating 40 micron

Outer Diameter 3.15 inch (80 mm)

Inner Diameter 1.66 inch (42.2 mm)

Length 6.18 inch (157 mm)

Efficiency Beta 2 40 micron

Collapse Burst 435 psi (30 bar)

Flow Direction Outside-In

Style Cartridge

Media Type Wire MeshPrice Type FH*

Packaged Dimensions

Packaged Length 3.60 inch (9.144 cm)

Packaged Width 3.50 inch (8.890 cm)

Packaged Height 10.20 inch (25.908 cm)

Packaged Weight 1.54 lb (0.697 kg)

Packaged Volume 0.07 ft3 (0.002 m3)

Other Information

Country of Origin Canada

NMFC Code 069100-08

HTS Code 8421290040

UPC Code 742330200575
