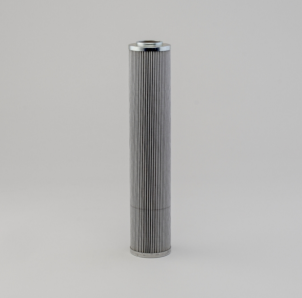

P571377 HYDRAULIC FILTER, CARTRIDGE DT

Why Choose Donaldson DT Filters?
High-performance DT Hydraulic Cartridges utilize Donaldson
Synteq™ media technology which extends filter life, allows a
higher initial cleanliness, and provides superior hydraulic
system protection.
• DT hydraulic filters help protect equipment, reduce
maintenance cost and increase equipment uptime  which
has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for
hydraulic applications.
• A high dirt holding capacity provides longer filter life  for
extended filter change intervals, reducing time and expense
for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT
filters.
Attributes
Seal Material Viton
Outer Diameter 3.10 inch (78.7 mm)
Inner Diameter 1.59 inch (40.3 mm)
Length 15.75 inch (400 mm)
Overall Length 15.74 inch (399.9 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 300 psi (20.7 bar)
Flow Direction Outside-In
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 3.70 inch (9.398 cm)
Packaged Width 3.80 inch (9.652 cm)
Packaged Height 17.40 inch (44.196 cm)
Packaged Weight 2.05 lb (0.931 kg)
Packaged Volume 0.14 ft3 (0.004 m3)
Pieces Per Pallet 264
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330955154
