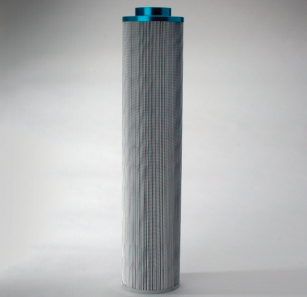

Donaldson Filtration P571392 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 6.08 inch (154.4 mm)
Inner Diameter 3.04 inch (77.2 mm)
Overall Length 28.32 inch (719.3 mm)
Efficiency Beta 1000 14 micron
Collapse Burst 149 psi (10.3 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 7.50 inch (19.050 cm)
Packaged Width 7.80 inch (19.812 cm)
Packaged Height 39.50 inch (100.330 cm)
Packaged Weight 7.43 lb (3.373 kg)
Packaged Volume 1.34 ft3 (0.037 m3)
Other Information
Country of Origin United States
NMFC Code 069100-01
HTS Code 8421290040
UPC Code 742330955925
