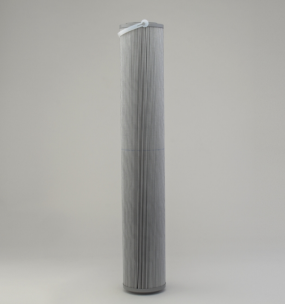

Donaldson Filtration P572296 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Outer Diameter 5.96 inch (151.4 mm)
Inner Diameter 3.84 inch (97.5 mm)
Length 36.46 inch (926.2 mm)
Gasket OD 3.89 inch (98.73 mm)
Gasket ID 3.61 inch (91.67 mm)
Efficiency Beta 1000 5 micron
Collapse Burst 100 psi (6.9 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Synthetic
Price Type FH*
Packaged Dimensions
Packaged Length 6.00 inch (15.240 cm)
Packaged Width 6.50 inch (16.510 cm)
Packaged Height 39.63 inch (100.648 cm)
Packaged Weight 7.54 lb (3.421 kg)
Packaged Volume 0.89 ft3 (0.025 m3)
Other Information
Country of Origin United States
NMFC Code 069100-08
HTS Code 8421290065
UPC Code 742330963333
