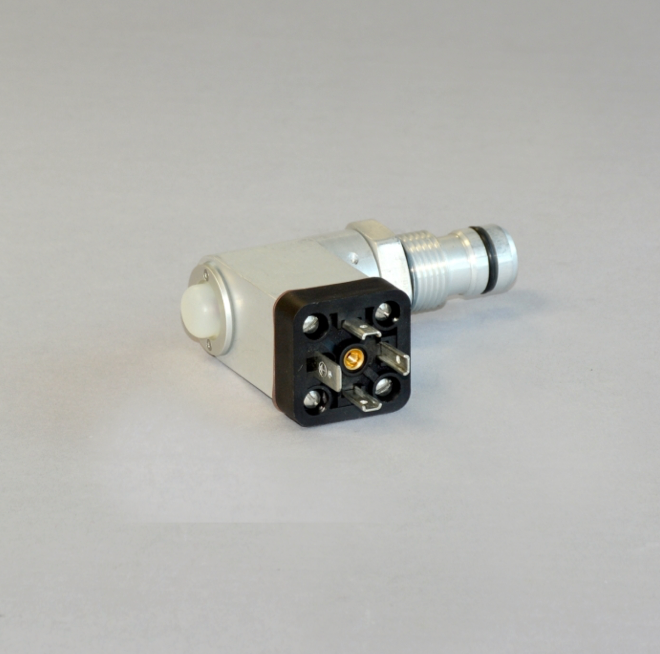

Donaldson Filtration P572387.HYDRAULIC INDICATOR ASSEMBLY, VISUAL/ELECTRICAL

Attributes

Length 3.00 inch (76.2 mm)

Bypass Valve Yes

Bypass Valve Setting LR 100 psi (6.9 bar)

Style Visual/Electrical

Thermal Lockout Yes

Surge Control Yes

Seal Material Nitrile

Indicator Actuation 100 psid

Electrical Type 115V AC / 28V DC, 5 AMP

Connector Style Hirschmann

Series W440, W350, W451Price Type H

Packaged Dimensions

Packaged Length 3.10 inch (7.874 cm)

Packaged Width 3.10 inch (7.874 cm)

Packaged Height 3.25 inch (8.255 cm)

Packaged Weight 0.30 lb (0.136 kg)

Packaged Volume 0.02 ft3 (0.001 m3)

Pieces Per Pallet 2520

Other Information

Country of Origin United States

NMFC Code 121570

HTS Code 8543709860

UPC Code 742330987001
