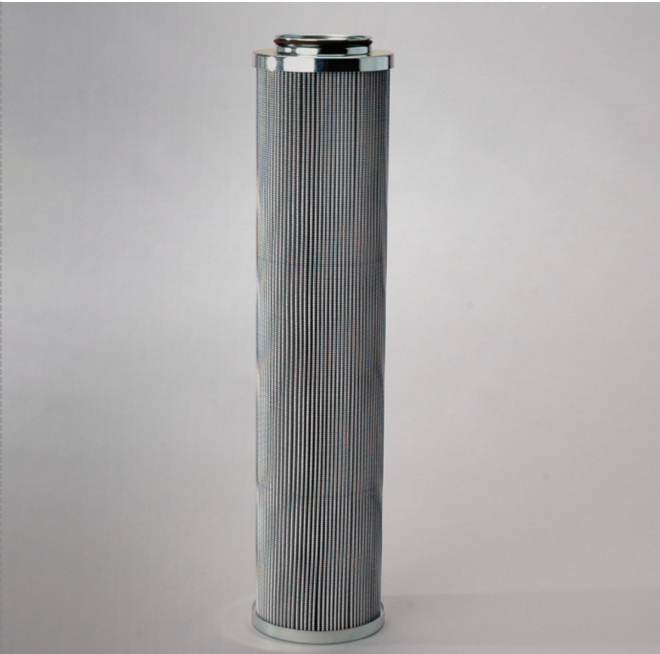

Donaldson Filtration P572672.HYDRAULIC FILTER, CARTRIDGE DT

Why Choose Donaldson DT Filters?

High-performance DT Hydraulic Cartridges utilize Donaldson

Synteq™ media technology which extends filter life, allows a

higher initial cleanliness, and provides superior hydraulic

system protection.

• DT hydraulic filters help protect equipment, reduce

maintenance cost and increase equipment uptime which

has a direct impact on your bottom line.

• DT filters offer the best available chemical resistance for

hydraulic applications.

• A high dirt holding capacity provides longer filter life for

extended filter change intervals, reducing time and expense

for servicing equipment

• Fluorocarbon seals are standard on all Donaldson DT

filters.

3.60 inch (91.5 mm)

2.48 inch (63 mm)

15.30 inch (388.6 mm)

2.48 inch (63 mm)

6 micron

149 psi (10.3 bar)Flow Direction Outside-In

Style Cartridge

Brand DT High-Performance

Media Type Synthetic

Price Type FH

Packaged Dimensions

Packaged Length 4.80 inch (12.192 cm)

Packaged Width 4.40 inch (11.176 cm)

Packaged Height 17.80 inch (45.212 cm)

Packaged Weight 1.96 lb (0.890 kg)

Packaged Volume 0.22 ft3 (0.006 m3)

Pieces Per Pallet 300

Other Information

Country of Origin United States

NMFC Code 069100-04

HTS Code 8421290040

UPC Code 742330964415
