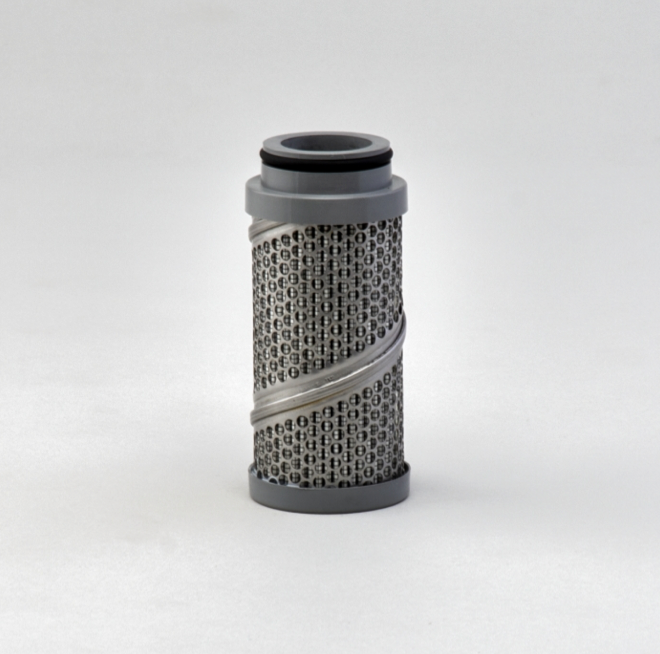

Donaldson Filtration P573085.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Seal Material Viton

Outer Diameter 2.12 inch (53.9 mm)

Inlet Diameter 1.67 inch (42.3 mm)

Overall Length 4.74 inch (120.52 mm)

Efficiency Beta 1000 4 micron

Collapse Burst 150 psi (10.34 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type SyntheticPrice Type FH*

Packaged Dimensions

Packaged Length 2.40 inch (6.096 cm)

Packaged Width 2.30 inch (5.842 cm)

Packaged Height 5.50 inch (13.970 cm)

Packaged Weight 0.45 lb (0.204 kg)

Packaged Volume 0.02 ft3 (0.000 m3)

Other Information

Country of Origin United States

NMFC Code 069100-13

HTS Code 8421290065

UPC Code 742330980170
