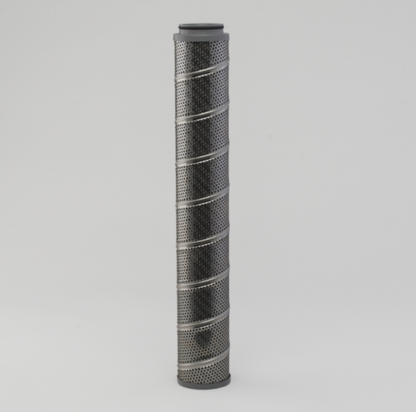

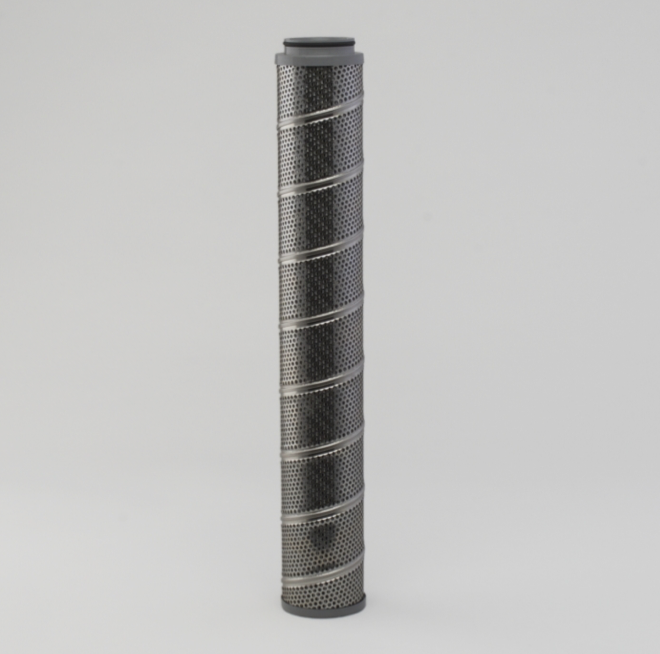

Donaldson Filtration P573117 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Seal Material Viton

Outer Diameter 3.11 inch (79 mm)

Inner Diameter 2.48 inch (62.9 mm)

Overall Length 20.78 inch (527.8 mm)

Efficiency Beta 1000 8 micron

Collapse Burst 149 psi (10.3 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type SyntheticPrice Type FH

Packaged Dimensions

Packaged Length 4.33 inch (10.998 cm)

Packaged Width 4.33 inch (10.998 cm)

Packaged Height 24.41 inch (62.001 cm)

Packaged Weight 2.31 lb (1.049 kg)

Packaged Volume 0.26 ft3 (0.007 m3)

Pieces Per Pallet 99

Other Information

Country of Origin United States

NMFC Code 069100-06

HTS Code 8421290065

UPC Code 742330975220

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
