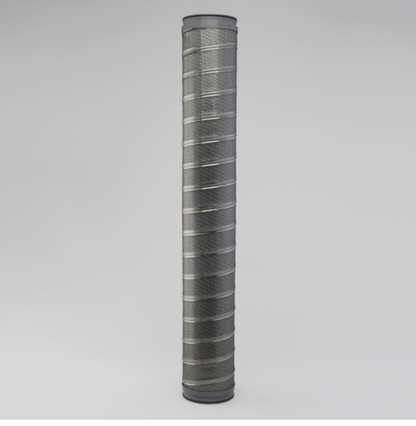

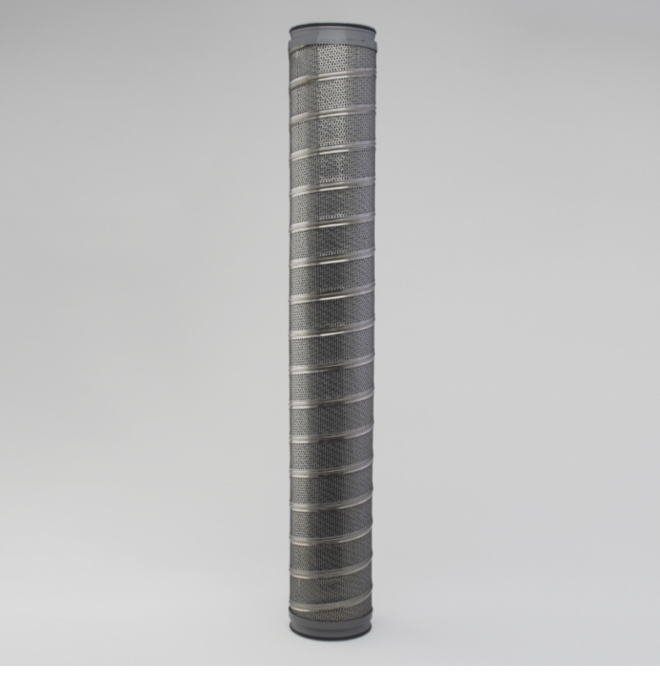

Donaldson Filtration P573133 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Seal Material Viton

Outer Diameter 5.94 inch (151 mm)

Overall Length 41.52 inch (1054.6 mm)

Efficiency Beta 1000 12 micron

Collapse Burst 149 psi (10.3 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 8.00 inch (20.320 cm)

Packaged Width 8.00 inch (20.320 cm)

Packaged Height 46.20 inch (117.348 cm)

Packaged Weight 14.02 lb (6.365 kg)

Packaged Volume 1.71 ft3 (0.048 m3)

Pieces Per Pallet 30

Other Information

Country of Origin United States

NMFC Code 069100-09

HTS Code 8421290065

UPC Code 742330980446
