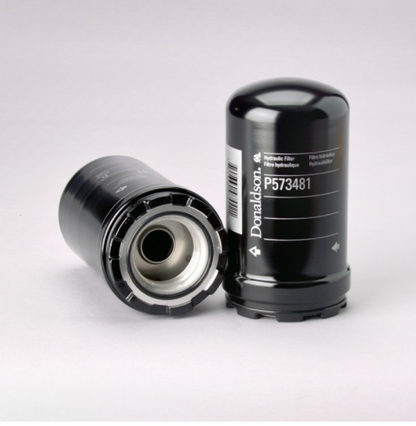

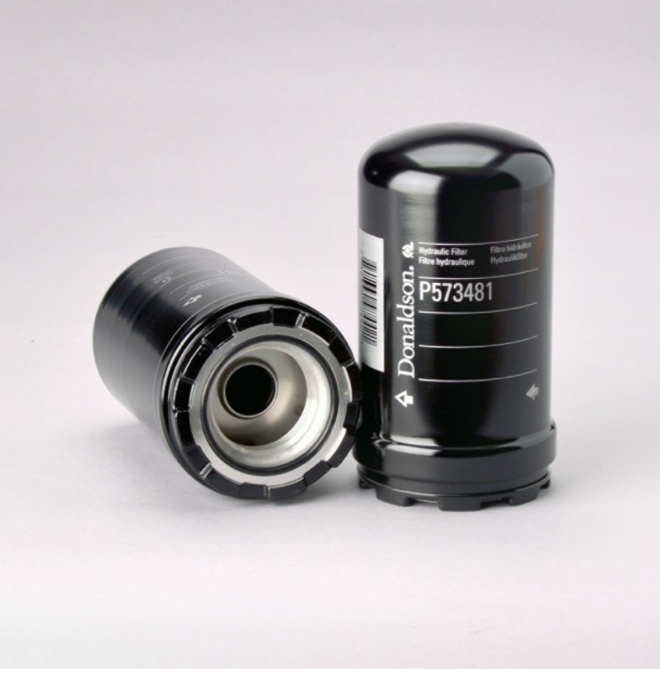

Donaldson Filtration P573481 HYDRAULIC FILTER, SPIN-ON

Why Choose Donaldson Spin-On Filters

• High-performance Hydraulic Spin-On filters utilize

Donaldson media technology which undergoes stringent

design and testing which sets the standard in filtration

performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic Spin-On filters for greater contamination control

• A variety of filters which meet and/or exceed OEM

specifications

Attributes

Outer Diameter 3.44 inch (87.4 mm)

Thread Size M45 x 2

Length 6.08 inch (154.5 mm)

Gasket OD 2.39 inch (60.6 mm)

Gasket ID 2.14 inch (54.4 mm)

Efficiency Beta 1000 11 micron

Collapse Burst 1494 psi (103 bar)

Flow Direction StandardStyle Spin-On

Media Type Synthetic

Price Type F

Packaged Dimensions

Packaged Length 4.00 inch (10.160 cm)

Packaged Width 4.10 inch (10.414 cm)

Packaged Height 6.80 inch (17.272 cm)

Packaged Weight 1.80 lb (0.817 kg)

Packaged Volume 0.06 ft3 (0.002 m3)

Pieces Per Pallet 600

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290040

UPC Code 742330974421

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
