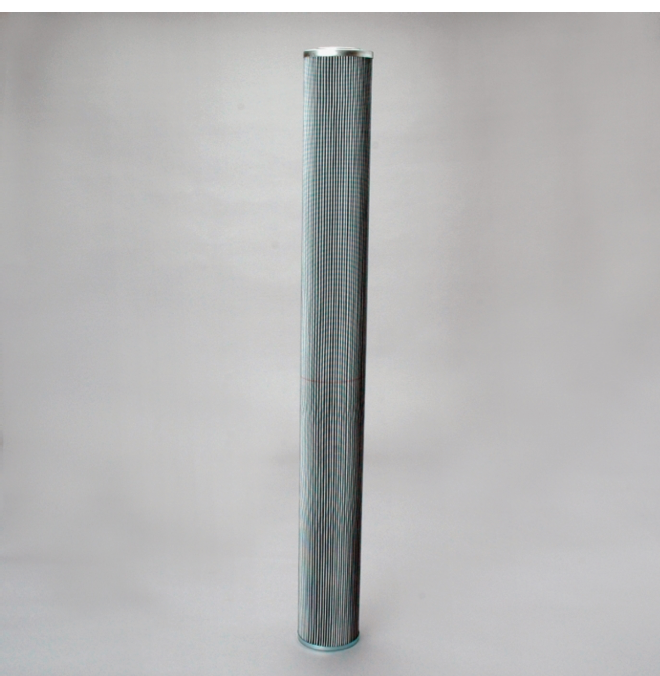

Donaldson Filtration P573486 HYDRAULIC FILTER, CARTRIDGE DT

Why Choose Donaldson DT Filters?

High-performance DT Hydraulic Cartridges utilize Donaldson

Synteq™ media technology which extends filter life, allows a

higher initial cleanliness, and provides superior hydraulic

system protection.

• DT hydraulic filters help protect equipment, reduce

maintenance cost and increase equipment uptime which

has a direct impact on your bottom line.

• DT filters offer the best available chemical resistance for

hydraulic applications.

• A high dirt holding capacity provides longer filter life for

extended filter change intervals, reducing time and expense

for servicing equipment

• Fluorocarbon seals are standard on all Donaldson DT

filters.

Attributes

Outer Diameter 3.79 inch (96.2 mm)

Inner Diameter 2.20 inch (55.9 mm)

Overall Length 34.33 inch (872 mm)

Efficiency Beta 1000 5 micron

Collapse Burst 149 psi (10.3 bar)

Flow Direction Outside-InStyle Cartridge

Brand DT High-Performance

Media Type Synthetic

Price Type FH*

Packaged Dimensions

Packaged Length 4.60 inch (11.684 cm)

Packaged Width 4.50 inch (11.430 cm)

Packaged Height 39.40 inch (100.076 cm)

Packaged Weight 4.95 lb (2.247 kg)

Packaged Volume 0.47 ft3 (0.013 m3)

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290065

UPC Code 742330974292
