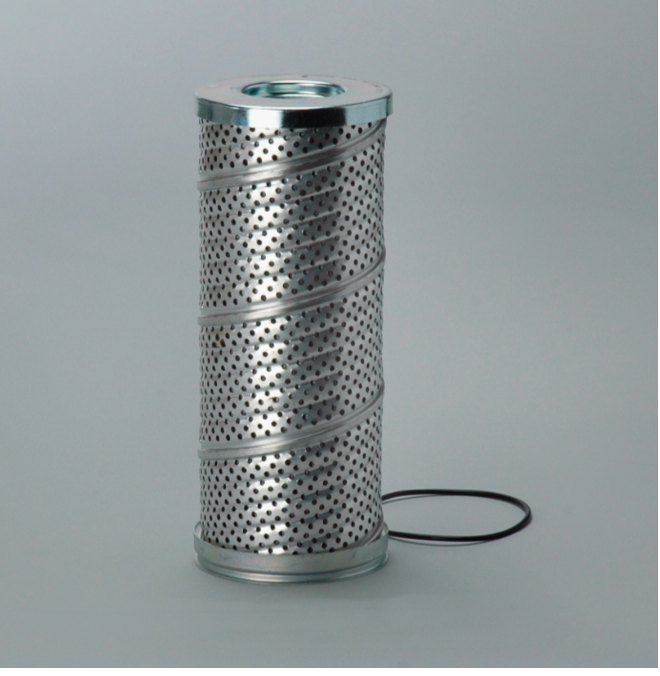

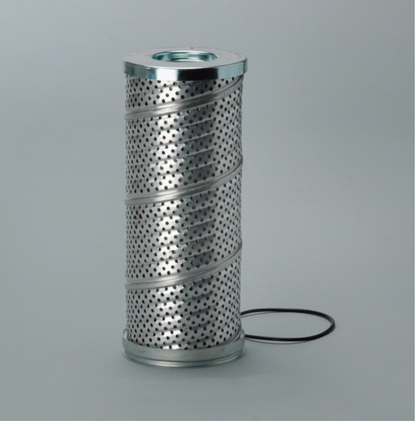

Donaldson Filtration P574134HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.41 inch (86.59 mm)

Inner Diameter 1.96 inch (49.78 mm)

Length 8.21 inch (208.6 mm)

Efficiency Beta 1000 12 micron

Collapse Burst 249 psi (17.2 bar)

Flow Direction Inside-Out

Style Cartridge

Media Type Synthetic

Price Type FH*Packaged Dimensions

Packaged Length 4.20 inch (10.668 cm)

Packaged Width 4.30 inch (10.922 cm)

Packaged Height 10.10 inch (25.654 cm)

Packaged Weight 1.32 lb (0.599 kg)

Packaged Volume 0.11 ft3 (0.003 m3)

Pieces Per Pallet 400

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290065

UPC Code 742330975428

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Glass Wool Fibers, which are

known to the State of California to cause

cancer. For more information go to

www.P65Warnings.ca.gov.
