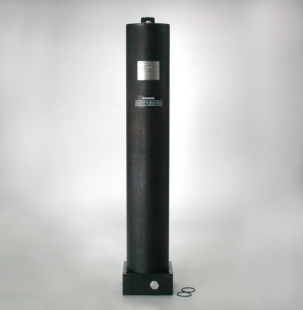

Donaldson Filtration P574228 HYDRAULIC FILTER ASSEMBLY

Why Choose Donaldson Hydraulic Assemblies
• A variety of low, medium and high-pressure filter
assemblies available for a wide range of applications.
• Choose between optional features for a customized
assembly that best fits the needs of your specific application.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Donaldson media delivers better system protection and
superior performance.
Attributes
Inlet Diameter 1.50 inch (38 mm)
Outlet Diameter 1.50 inch (38 mm)
Overall Length 34.02 inch (864 mm)
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series W451
Price Type H
Packaged Dimensions
Packaged Length 35.63 inch (90.488 cm)
Packaged Width 8.25 inch (20.955 cm)
Packaged Height 8.25 inch (20.955 cm)
Packaged Weight 101.90 lb (46.263 kg)
Packaged Volume 1.40 ft3 (0.039 m3)
Pieces Per Pallet 25
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421290040
UPC Code 742330977934
