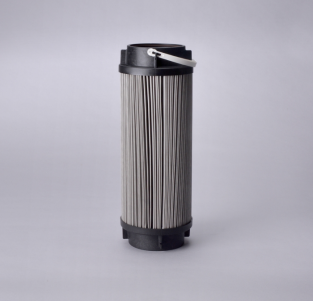

Donaldson Filtration P575474 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Mesh Rating 40 micron
Outer Diameter 5.94 inch (150.8 mm)
Inner Diameter 4.15 inch (105.5 mm)
Overall Length 16.09 inch (408.7 mm)
Efficiency Beta 2 40 micron
Collapse Burst 150 psi (10.34 bar)
Flow Direction Outside-In
Style Cartridge
Media Type Wire Mesh
Price Type FH
Packaged Dimensions
Packaged Length 6.50 inch (16.510 cm)
Packaged Width 6.50 inch (16.510 cm)
Packaged Height 19.70 inch (50.038 cm)
Packaged Weight 5.31 lb (2.411 kg)
Packaged Volume 0.48 ft3 (0.013 m3)
Pieces Per Pallet 84
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330984673
