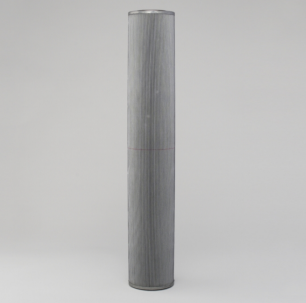

Donaldson Filtration P575624 HYDRAULIC FILTER, CARTRIDGE

 Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Seal Material Viton
Outer Diameter 6.02 inch (152.8 mm)
Inner Diameter 2.87 inch (72.9 mm)
Length 34.05 inch (864.8 mm)
Overall Length 34 inch (863.6 mm)
Efficiency Beta 1000 5 micron
Efficiency Test Std ISO 16889
Collapse Burst 125 psi (8.6 bar)
Flow Direction Outside-In
Maximum Operating Temperature 250 °F (121 °C)
Style Cartridge
Media Brand Synteq XP™
Media Type Synteq XP
Price Type FH
Packaged Dimensions
Packaged Length 7.00 inch (17.780 cm)
Packaged Width 6.40 inch (16.256 cm)
Packaged Height 39.38 inch (100.013 cm)
Packaged Weight 11.29 lb (5.126 kg)
Packaged Volume 1.02 ft3 (0.029 m3)
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421290040
UPC Code 742330989067
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Epichlorohydrin, which are known
to the State of California to cause cancer and
birth defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.
