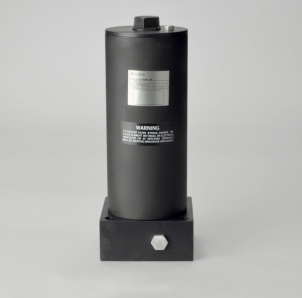

Donaldson Filtration P575919 HYDRAULIC FILTER ASSEMBLY

  Why Choose Donaldson Hydraulic Assemblies
• A variety of low, medium and high-pressure filter
assemblies available for a wide range of applications.
• Choose between optional features for a customized
assembly that best fits the needs of your specific application.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Donaldson media delivers better system protection and
superior performance.
Attributes
Length 5.75 inch (146 mm)
Width 6.38 inch (162 mm)
Height 15.31 inch (389 mm)
Inlet Size 1 1/2 SAE 4 Bolt Code 61
Outlet Size 1 1/2 SAE 4 Bolt Code 61
Bypass Valve Yes
Bypass Valve Setting HR 90 psi (6.2 bar)
Series W451
Price Type H
Packaged Dimensions
Packaged Length 19.60 inch (49.784 cm)
Packaged Width 7.80 inch (19.812 cm)
Packaged Height 10.30 inch (26.162 cm)
Packaged Weight 57.75 lb (26.219 kg)
Packaged Volume 0.91 ft3 (0.026 m3)
Pieces Per Pallet 48
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421290040
UPC Code 742330986752
