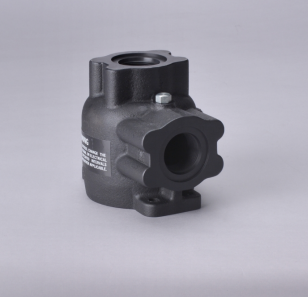

Donaldson Filtration P575935 HEAD ASSEMBLY, HYDRAULIC

   Why Choose Donaldson Hydraulic Heads
• A variety of low, medium and high-pressure filter heads
available for a wide range of applications.
• Choose between optional features for a customized heads
that best fits the needs of your specific application.
• A variety of inlet & outlet port configurations are available
to meet your exact requirements.
Attributes
Length 4.76 inch (121 mm)
Width 6.57 inch (167 mm)
Height 5.63 inch (143 mm)
Inlet Size SAE-20
Outlet Size SAE-20
Bypass Valve Yes
Bypass Valve Setting LR 50 psi (3.45 bar)
Bypass Valve Setting HR 50 psi (3.45 bar)
Series W620
Price Type H
Packaged Dimensions
Packaged Length 0.54 FT
Packaged Width 0.54 FT
Packaged Height 1.05 FT
Packaged Weight 16.17 lb (7.341 kg)
Packaged Volume 0.31 ft3 (0.009 m3)
Pieces Per Pallet 60
Other Information
Country of Origin United States
NMFC Code 062070-02
HTS Code 8421990180
UPC Code 742330986929
