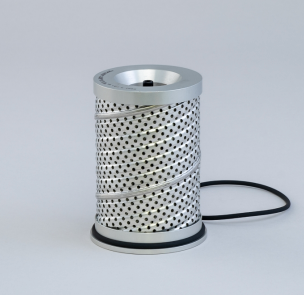

Donaldson Filtration P580126 HYDRAULIC FILTER, CARTRIDGE DT

 Why Choose Donaldson DT Filters?
High-performance DT Hydraulic Cartridges utilize Donaldson
Synteq™ media technology which extends filter life, allows a
higher initial cleanliness, and provides superior hydraulic
system protection.
• DT hydraulic filters help protect equipment, reduce
maintenance cost and increase equipment uptime  which
has a direct impact on your bottom line.
• DT filters offer the best available chemical resistance for
hydraulic applications.
• A high dirt holding capacity provides longer filter life  for
extended filter change intervals, reducing time and expense
for servicing equipment
• Fluorocarbon seals are standard on all Donaldson DT
filters.
Attributes
Seal Material Viton
Outer Diameter 3.42 inch (86.87 mm)
Length 4.74 inch (120.4 mm)
Efficiency Beta 1000 8 micron
Bypass Valve Yes
Bypass Valve Setting LR 10 psi (0.72 bar)
Collapse Burst 149 psi (10.3 bar)
Maximum Operating Temperature 250 °F (121 °C)
Media Brand DT High-Performance
Price Type FH*
Packaged Dimensions
Packaged Length 0.35 FT
Packaged Width 0.35 FT
Packaged Height 0.59 FT
Packaged Weight 1.01 lb (0.459 kg)
Packaged Volume 0.07 ft3 (0.002 m3)
Other Information
Country of Origin United States
NMFC Code 069100-05
HTS Code 8421290040
UPC Code 742330231654
