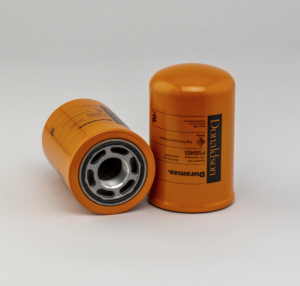

Donaldson Filtration P580465 HYDRAULIC FILTER, SPIN-ON DURAMAX

 Features and Benefits – Duramax Filters
• Duramax filters are the highest rated medium pressure
spin-on filters available in the market.
• Duramax filters are proven, reliable, long-lived and easy to
install.
• A variety of mix and match system of heads, housings and
media choices to meet your exact requirements.
• Applications include hydrostatic charge side filtration, pilot
circuits, power shift transmissions and kidney loop circuits
• Improved performance including higher burst, greater
fatigue strength and longer filter life.
Attributes
Outer Diameter 3.82 inch (97 mm)
Thread Size 1 3/8-12 UN
Length 5.97 inch (151.6 mm)
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.72 bar)
Series HMK04
Media Brand Synteq™
Media Type Synthetic
Price Type FH
Primary Application Bobcat 6677652
Packaged Dimensions
Packaged Length 4.10 inch (10.414 cm)
Packaged Width 4.10 inch (10.414 cm)
Packaged Height 6.90 inch (17.526 cm)
Packaged Weight 1.85 lb (0.840 kg)
Packaged Volume 116.00 IN3
Pieces Per Pallet 500
Other Information
Country of Origin Mexico
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330232187
